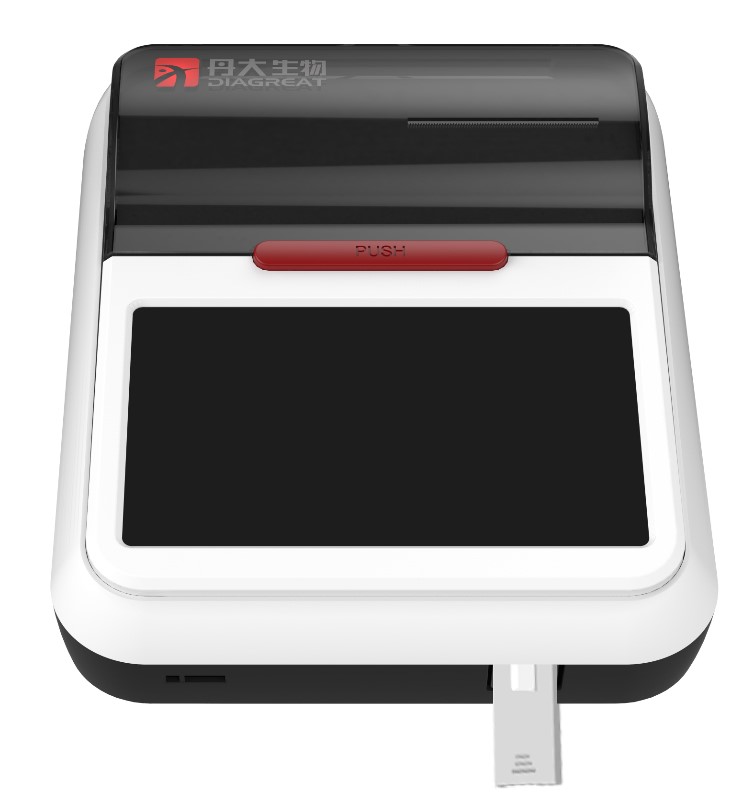

Single Chanel TRFIA POCT Analyzer-D10

Point-Of-Care-Test (POCT) System


Time-Resolved Fluorescence (TRF) is a kind of isotope optical markers. Compared with ordinary Fluorescence, it has a bigger Stock displacement and longer life.

It can effectively avoid the background fluorescence in the samples, and the influence of light and stray light, so compared to common fluorescence it has higher sensitivity and anti-interference ability.


Product Advantages

Convenient: It can be detected with trace peripheral blood, serum, plasma.

Quantitative: The directional marker flourescence microsphere is fully quantified.

Reliable: It can be traced back to the Certified Reference material.

Accuracy: ≥±15%

Measuring Range: R≥0.97

Precision: CV≤10%

Stability: σ≤±8%

Quality control: Independent quality control mode with CurveSingle Chanel TRFIA POCT Analyzer-D10Single Chanel TRFIA POCT Analyzer-D10

Product Specifications


Technical Data


7 inch color touch screen

Communication Interface

Serial, Ethernet, USB, Mini USB, Micro SD card


Built-in embedded thermal printer or connect with external printers

LIS Communication

Two-way communication

Data Transfer

Wireless transmission can be added soon


ID Card

Result Output

U Disk, LIS or Printer


100000 tests

Test Mode

Quick Test Mode and Standard Test Mode

Result time

To get results in 10s under Quick Test Mode


PC Side

Dimension (L*W*H)

265*230*140 mm



Sample Material

Sample Type

Serum / Plasma / Whole blood

Sample Volume

≤ 200 ul


Operation Condition

Temperature Range

10 to 40 °C

Relative Humidity

10-80% (no condensation)

Maximum Altitude

3,000 m


Storage Condition

Temperature Range

-10 to 60 °C

Relative Humidity

10-80% (no condensation)
